Sunlike manufactures sector valves for controlling bulk material discharge from silos, hoppers, and industrial processing equipment. These valves can be configured for different operating conditions and material handling requirements.
Sunlike offers customized manufacturing based on project specifications and application requirements.

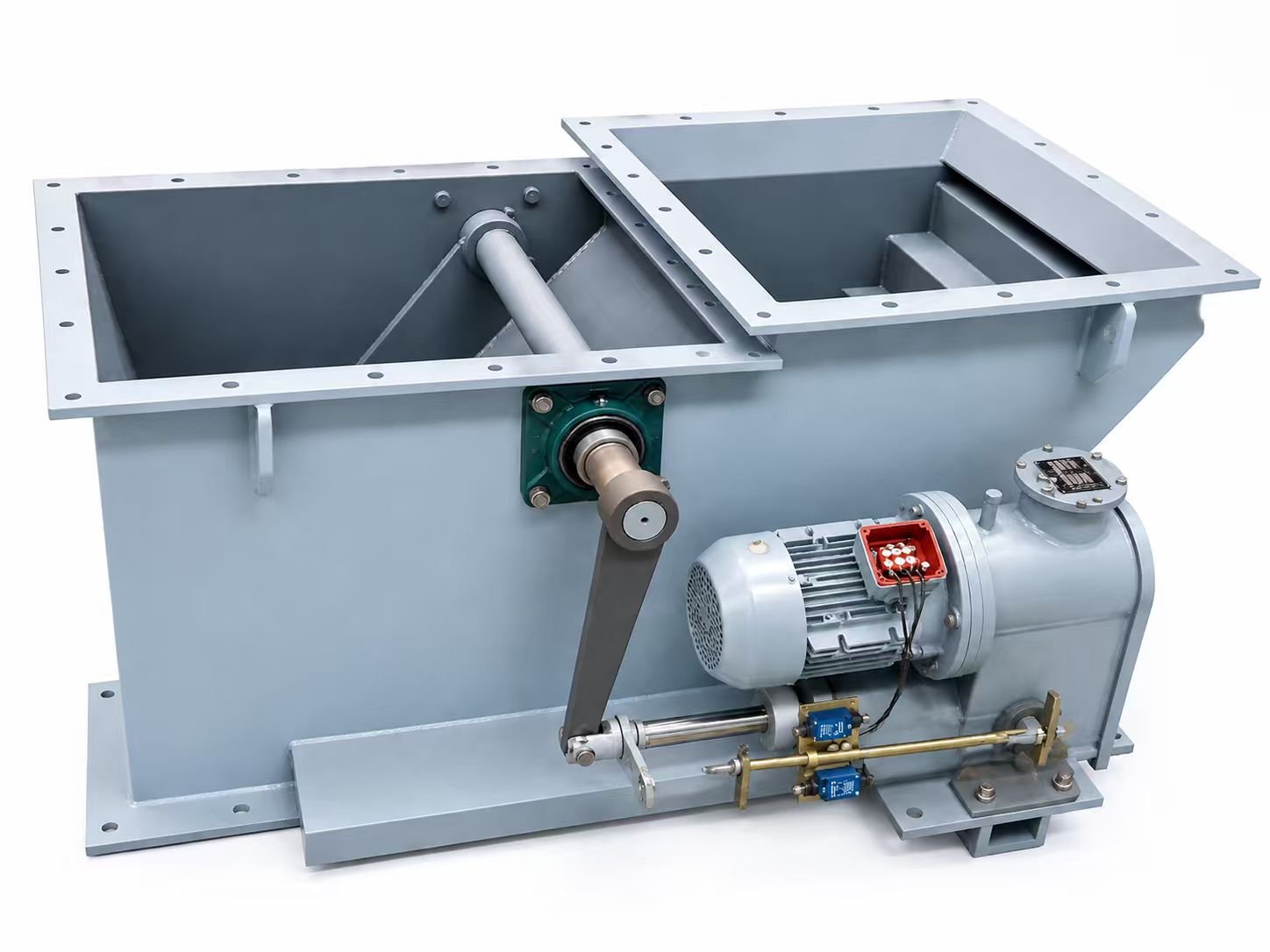

The Sector Gate is designed specifically for bulk material handling applications in the building materials industry and is an ideal discharge device for cement clinker silos and associated dust collection systems.
A dust cover is installed at the discharge outlet to help prevent dust from escaping during material discharge. The gate is driven by an electro-hydraulic actuator, replacing conventional pneumatic cylinder operation and helping reduce overall system and installation costs.
The valve body features a stepped structural design to reduce the direct impact of material flow. Key wear areas inside the valve body are equipped with wear-resistant liners featuring a grid-type structure, which minimizes direct abrasion of the liners and extends their service life.
Key Features
- Designed for cement clinker and bulk material discharge applications
- Dust cover helps minimize dust emissions during discharge
- Electro-hydraulic actuator for reliable operation
- Stepped valve body design reduces material impact
- Wear-resistant liners protect critical internal areas
- Durable construction for abrasive bulk material handling
- Easy integration with silo discharge and material handling systems
Sector Gate Technical Specifications：
| TDSZ-30 | TDSZ-40 | TDSZ-50 | TDSZ-60 | TDSZ-70 | TDSZ-80 | |
| Electro-Hydraulic Actuator Model | DYZ700-280/110-P | DYTZ700-280/110-P | DYTZ700-300/110-P | DYTZ700-300/110-P | DYTZ700-350/110-P | DYTZ700-350/110-P |
| Power KW | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| W | 300 | 400 | 500 | 600 | 700 | 800 |
| A | 400 | 500 | 626 | 726 | 840 | 940 |
| A1 | 120 | 220 | 320 | 360 | 460 | 560 |
| A2 | 150 | 250 | 350 | 390 | 490 | 590 |
| B | 350 | 400 | 450 | 500 | 550 | 600 |
| B1 | 470 | 520 | 570 | 620 | 670 | 720 |
| L | 300 | 350 | 400 | 450 | 500 | 550 |
| L1 | 800 | 900 | 1050 | 1200 | 1400 | 1550 |
| L2 | 1175 | 1175 | 1220 | 1220 | 1340 | 1340 |
| H | 380 | 540 | 680 | 750 | 900 | 1050 |
| H1 | 429 | 429 | 513 | 513 | 560 | 560 |
| H2 | 170 | 170 | 190 | 190 | 190 | 191 |
| H3 | 60 | 60 | 70 | 70 | 80 | 80 |
| H4 | 340 | 480 | 610 | 670 | 820 | 950 |
| H5 | 400 | 450 | 550 | 650 | 800 | 900 |
| l | 280 | 280 | 350 | 350 | 400 | 400 |
| N×a | 2×175 | 3×150 | 4×140 | 4×165 | 5×150 | 5×174 |
| n×Φ | 8-18 | 12-18 | 16-18 | 16-18 | 20-22 | 20-22 |
